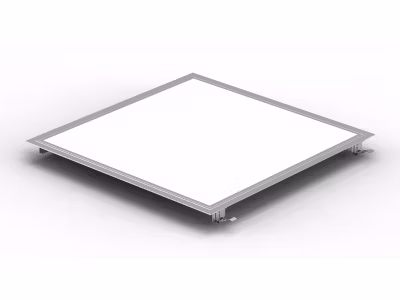

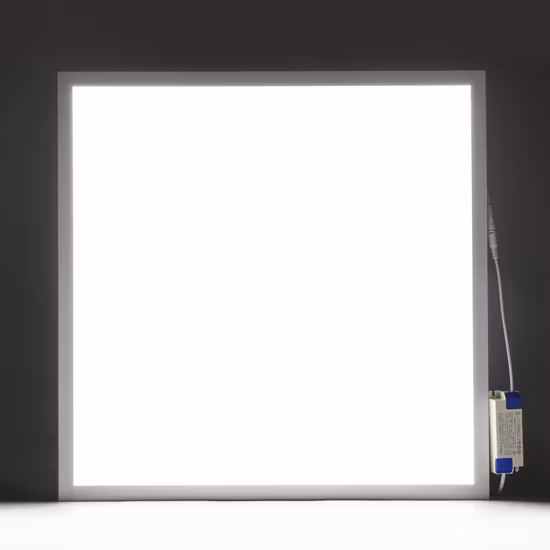

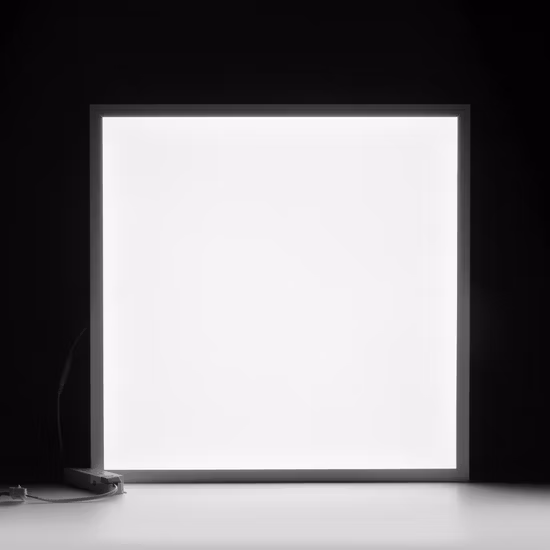

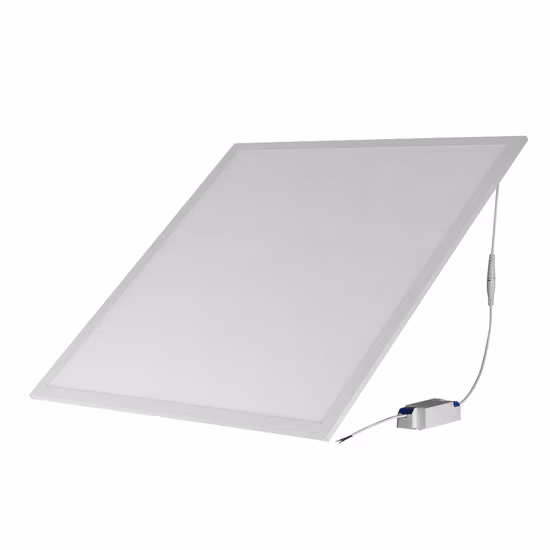

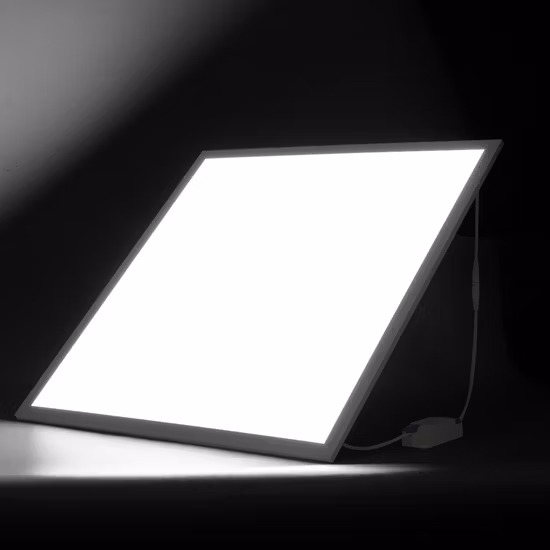

DESCRIPTION

Basic Info

Model NO.	ATA-P22F40WX
Base Material	Plastic
Certification	CE, RoHS, SAA
Voltage	120V
Beam Angle	120°
LED Type	SMD 2835
Luminous Flux	125lm/W
Power	20W/30W/35W/40W/50W/60W/72W/75W
Working Voltage	100-277V
Color Temperature	3000K, 4000K, 5000K, 6000K
Function	0-10V Dimmable
Surface Color	White / Silver
IP Rating	IP40
Installation Methods	Embedded, Suspending, Roof Mount, Latch Catches
Certificates	UL, cUL, Dlc4.2, TUV, GS, CB, SAA, FCC, CE, RoHS
Transport Package	Pearl Foam Inner Box and K=K Carton
Specification	1X1ft/2X2ft/1X4ft/2X4ft
Trademark	ATA
Origin	Made in China
HS Code	9405409000
Production Capacity	30, 0000piece/Pieces/Month

Product Description

Product Description
The design is ideal for using in ceiling fixtures
1. Perfect world-class LED technology
2. Makes it really crazy super bright
3. The Same Model, The Lower Price
4. Use mostly in commercial and residential applications
5. Superly easy to install

What should be a good led panel light?
Higher power and light uniformity
LED panels reinforced frame for extra durability
Thermoplastic coating for extreme scratch resistance
Quick connect system operates from 200v to 240v

Product Advantages
1. CE RoHS LED Panel Light.
2. 100lm-130lm/W, could apply for government rebate.
3. Besides 2*2ft, 1*4ft, 2*4ft, 1*1ft 297*297mm is also available!
4. Perfect Light Uniformity.
5. Fire-rated junction box design with correct wiring, easy for installation.
6. Illuminate any room and ceiling up/down LED panel light LED panel light is perfect for commercial, residential, decorative applications like offices, pool table, retail shop, supermarkets, schools, hotels, restaurants painted ceiling illumination, workshop, hospital, homes etc.
7. The light provides ceiling accent lighting, usable downlighting simultaneously
Its transparent polycarbonate lens with frosted center delivers. Smooth illumination without visible bulbs or hot spots
8. LED light emit 9, 000 lumens of natural white illumination.
9. Energy-efficient LED panel lasts 5 times longer than fluorescent panels. Operates within a wide 100-277 VAC range. Can be linked to additional panels

Technical Specifications

Name	LED Panel Light
Light source	SMD4014, LM80
High efficiency	100-130lm/w
Driver efficiency	>89%
Parameters	CRI(Ra)>83, PF>0.95, THD<15%, UGR<19
Color	3000K, 4000K, 5000K, 6000K, RGB
Working Voltage	AC200~240V
Power	20w/30w/35w/40w/50w/60w/72w/75w
Size (mm)	297X297/603X603/300X1213/603X1213mm
Frame color	Silver & white
Function	0-10V dimmable, daylight & microwave sensor, Emergency
Dimmable mode	0-10V, PWM
Beam angle	120 degree
Light transmission rate	99%
Material	AL+PS Diffuser
Installation methods	Embedded, Suspending, Roof mount, Latch catches, Reverse buckling
Accessories	steel wire rope, screw, aluminium structure, Embedded installation doesn't need accessories
Lighting emitting type	side & back lighting
Certification	CE, RoHS
Warranty	3 years



Installation
1. Embedded without accessories
2. Suspending with wirerope
3. Surface mounting fixture with frame
4. Earthquake proof with hook

Applications
hotel, restaurant, elevator, wedding photography, bank, residential house and indoor lighting, high-end office, meeting room, villa, hotel, entertainment place, metro stations, shopping malls, kitchen, bath-room,emergency lighting, industrial lighting, airport, hospital, school, office, factory, institution buildings, places where energy saving lighting and high color rendering index lighting are needed.



User Manual:
Switch off power of the mains supply or respectively of the connection lead before doing any works.
The complete installation must be done by an electrical expert who is familiar with the valid directives.

Quaity Control:
Stability TEST: make sure 100% of the lamps be aging test at least 48hours
Lighting TEST: make sure 100% of the lamps be lighted before packing
Drop TEST: make sure every single light have been well protected by box
